Broadway–Chambers Building

The facade uses different materials for each of its horizontal sections. The three-story base is clad in stone, the eleven-story shaft is of brick, and the four-story capital is decorated with architectural terracotta. All four sides are decorated.^[7][16] The Broadway–Chambers Building was one of the first structures in New York City to use multicolored glazed terracotta, and the first commercial building in the city to do so.^[21][13] The colored terracotta panels served to highlight the steel superstructure.^[7] Communications between Gilbert and Andrews show that Gilbert had initially preferred a single-color scheme for the facade. However, Andrews had convinced Gilbert to add color after they traveled to see the buildings on the Columbia University campus.^[22][23]

The lowest two stories of the base are rusticated granite piers topped by Tuscan-style capitals with cartouches, festoons, and plaques. The piers divide the facades into three bays on Broadway and six on Chambers Street. There is a frieze running atop the piers, and the words broadway chambers inscribed on the Broadway size of the frieze. On the 3rd story, the bays are separated by rusticated granite piers topped by festoons, and there are two rectangular windows in each bay. A plain entablature runs above the 3rd floor.^[15][24] The granite used in the base is pale pink, with some traces of purple.^[22]

The 4th through 14th stories contain a brick facade designed to resemble rustication. Belt courses separate each floor, while there are two windows per bay on each floor, dividing the facade both horizontally and vertically.^[7][15] The bricks are a mixture of deep red and blue hues.^[22]

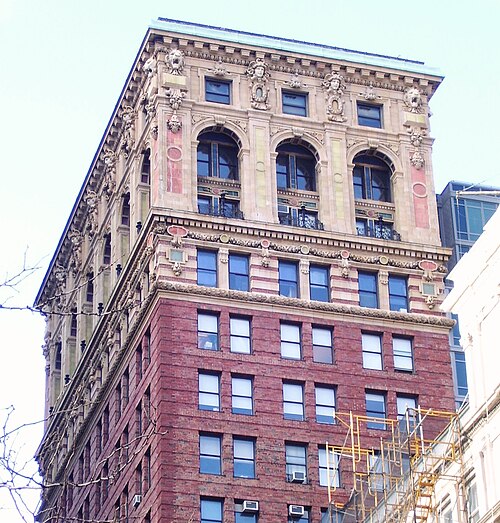

The 15th story is treated as a transitional story to the building's "capital", with terracotta bands below and along the 15th floor. The facades of the 16th through 18th stories are ornamented with terracotta on the Broadway and Chambers Street sides, and consist of plain brick on the north and west sides.^[15] The 16th and 17th stories form a loggia, with one arch in each bay; decorative pilasters with red-and-green panels between the arches; and ornamental iron balconies at the 16th floor. The facade of the 18th floor contains one square-headed window in each bay, Hermes heads on the top of each pilaster, and lions' heads at the corners. The building is topped by a copper cornice.^[7][15] The beige terracotta panels contain highlights in red, blue-green, and greenish-yellow hues.^[22]

During construction, the Broadway–Chambers Building was bounded by busy streets on the east and south, and existing buildings on the north and west. There was also a sand layer 50 feet (15 m) beneath the building. affecting the way that its foundation was constructed. New foundations were installed under the adjacent buildings, without disrupting business in these structures, and the outer walls of the Broadway-Chambers site were shored up. Piles were sunk near the walls of the old buildings and surrounded with timber. Pits were dug at intervals of about 10 feet (3 m), and a heavy post with a timber footing was erected upright in each pit. Sand was removed from inside the pits, around the heavy posts, and underneath the old walls of the site. New brick foundation walls with concrete footings and steel grillages were installed afterward.^[4]

The building's steel superstructure, covered by walls and fireproofing materials, was designed to resist wind pressures of up to 30 psf (1.4 kPa). The floors are made of hollow tile arches, 9 inches (230 mm) thick, covered with a layer of concrete. The interior partitions are also constructed with hollow tile arches, 4 inches (100 mm) thick.^[24]

When completed, the Broadway–Chambers Building contained Otis hydraulic elevators.^[24][25] The building's plumbing system served 16 communal restrooms, one on each floor above the street, as well as a restroom in the basement and a private restroom for the engineer. As arranged, thirteen of the communal toilets were for men, and three were for women.^[26] Building plans indicate that the elevators, as well as a fire stair and the restrooms, are all clustered around a corridor on the north side of the building. A "typical floor" was outfitted with several offices, connected to each other via doors. On the ground floor was an entrance vestibule from Broadway.^[27] The ground-floor space was intended for retail, the basement was to be used for a restaurant, and the subbasement housed the building machinery.^[24]

Plans for the 18-story skyscraper, designed by Gilbert on behalf of Andrews, were announced in March 1899. George A. Fuller Company received a contract to build the new structure at a projected cost of $700,000.^[6] Just before being selected to design Andrews's building, Gilbert had moved his offices to New York City.^[31] Work began on May 3, 1899, with the removal of existing structures.^[4] That month, the Andrews estate received a mortgage of £144,500 from the Scottish Provident Institution, of Edinburgh.^[5] The Real Estate Record and Guide also reported the same month that the Andrews estate had sold the lot to a syndicate composed of Gilbert and the Fuller Company.^[32] Excavation took more than months because of the need to underpin surrounding structures. The building's steel columns were in place by October 1, 1899.^[4][33]

After the foundation work was completed, the steel structure was constructed to the 2nd floor by October 6, then to the 7th floor by November 9, to the 17th floor by December 7, and to the roof by December 31.^[4][10][33] The masonry was installed simultaneously, reaching the 12th floor by December 31, 1899, and the cornice by February 1, 1900.^[4][33] Work proceeded in spite of several difficulties, such as the lack of heat in January, as well as the fact that the building's woodwork and rooftop copper had been burned at the wood mill in 1899.^[4][34] Several companies collaborated to create an exhibit about the construction of the building at the Paris Exposition of 1900.^[33][35][36] For the Paris Exposition, two models were built at 1:24 scale, one in plaster and the other in metal; both models stood about 11 feet (3.4 m) high. Purdy & Hutchinson built the plaster model for $1,000, while H. C. Hincliff built the metal model for $3,000.^[37] Gilbert received a medal from the Paris Exposition, addressed solely to "Monsieur Broadway-Chambers, Etats-Unis".^[38]

The building was completed relatively quickly because of the land valuation. The lot was estimated to be worth $1.5 million, and the monthly mortgage payments were estimated at $120,000, with a going interest rate of 4% over 24 months.^[33] The first tenants began moving into the building on April 27, 1900, and the building was in full operation four days later, with everything being complete except for some minor finishes.^[4][33] Some of its early tenants included confectioners Manufacturers' Purchasing Corporation,^[39] as well as insurance interests such as the People's Security Company^[40] and Aetna agent Frank F. Eagles.^[41] The flagpole on the roof was destroyed during a lightning storm in 1904.^[42]

The building has seen relatively little change over its existence. A copper gutter was originally located above the cornice atop the building, but was removed in 1925. The storefronts were also rearranged: the original arrangement had three, but this had been changed to four by the late 20th century, with the westernmost bay on Chambers Street turned into a service entrance.^[15] In 1992, the Broadway–Chambers Building became a New York City designated landmark.^[3]
