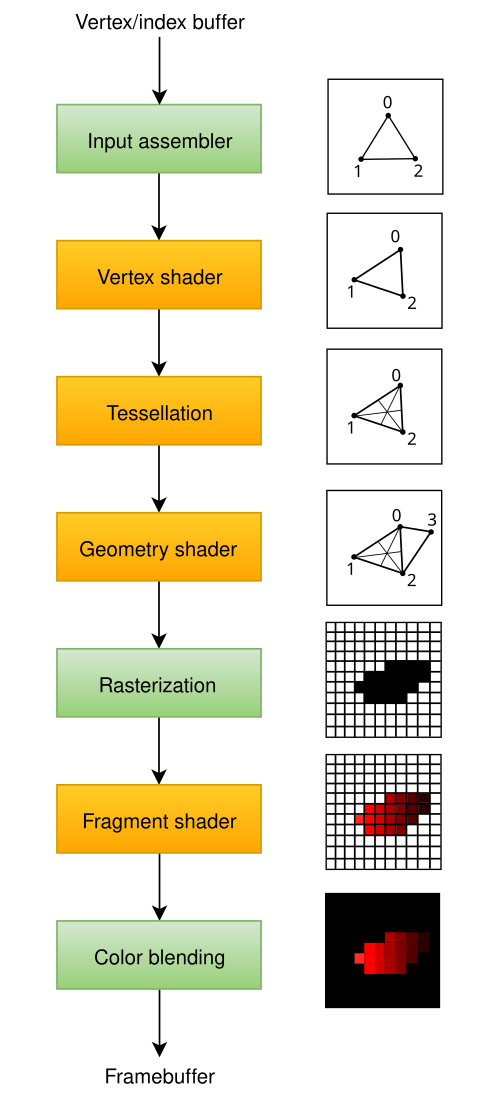

Vertex shaders are run once for each 3D vertex given to the graphics processor. The purpose is to transform each vertex's 3D position in virtual space to the 2D coordinate at which it appears on the screen (as well as a depth value for the Z-buffer).^[7] Vertex shaders can manipulate properties such as position, color and texture coordinates, but cannot create new vertices. The output of the vertex shader goes to the next stage in the pipeline, which is either a geometry shader if present, or the rasterizer. Vertex shaders can enable powerful control over the details of position, movement, lighting, and color in any scene involving 3D models.

Geometry shaders were introduced in Direct3D 10 and OpenGL 3.2; formerly available in OpenGL 2.0+ with the use of extensions.^[8] This type of shader can generate new graphics primitives, such as points, lines, and triangles, from those primitives that were sent to the beginning of the graphics pipeline.^[9]

Geometry shader programs are executed after vertex shaders. They take as input a whole primitive, possibly with adjacency information. For example, when operating on triangles, the three vertices are the geometry shader's input. The shader can then emit zero or more primitives, which are rasterized and their fragments ultimately passed to a pixel shader.

Typical uses of a geometry shader include point sprite generation, geometry tessellation, shadow volume extrusion, and single pass rendering to a cube map. A typical real-world example of the benefits of geometry shaders would be automatic mesh complexity modification. A series of line strips representing control points for a curve are passed to the geometry shader and depending on the complexity required the shader can automatically generate extra lines each of which provides a better approximation of a curve.

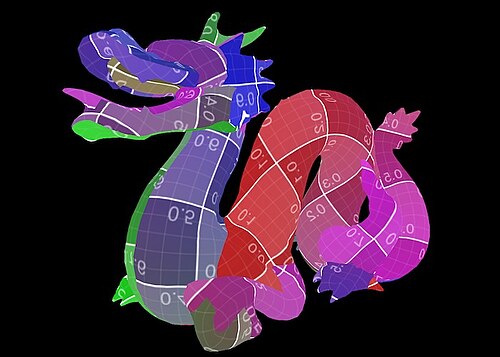

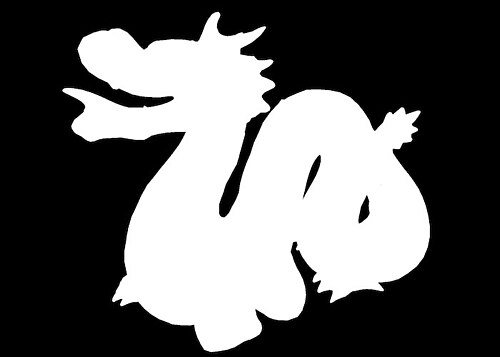

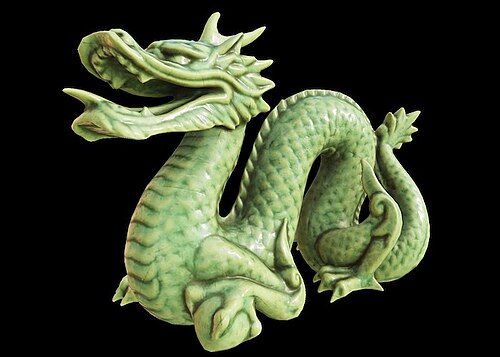

The Stanford dragon model rendered using fragment shaders with different outputs: solid white, applied texture, physically based shading.

Fragment shaders, also known as pixel shaders, compute color and other attributes of each "fragment": a unit of rendering work affecting at most a single output pixel. The simplest kinds of pixel shaders output one screen pixel as a color value; more complex shaders with multiple inputs/outputs are also possible.^[10] Pixel shaders range from simply always outputting the same color, to applying a lighting value, to doing bump mapping, shadows, specular highlights, translucency and other phenomena. They can alter the depth of the fragment (for Z-buffering), or output more than one color if multiple render targets are active. In 3D graphics, a pixel shader alone cannot produce some kinds of complex effects because it operates only on a single fragment, without knowledge of a scene's geometry (i.e. vertex data). However, pixel shaders do have knowledge of the screen coordinate being drawn, and can sample the screen and nearby pixels if the contents of the entire screen are passed as a texture to the shader. This technique can enable a wide variety of two-dimensional postprocessing effects such as blur, or edge detection/enhancement for cartoon/cel shaders. Pixel shaders may also be applied in intermediate stages to any two-dimensional images—sprites or textures—in the pipeline, whereas vertex shaders always require a 3D scene. For instance, a pixel shader is the only kind of shader that can act as a postprocessor or filter for a video stream after it has been rasterized.

OpenGL 4.0 and Direct3D 11 introduced a new shader class called a tessellation shader. It added two new shader stages to the traditional model: tessellation control shaders (also known as hull shaders) and tessellation evaluation shaders (also known as domain shaders), which together allow for simpler meshes to be subdivided into finer meshes at run-time according to a mathematical function. The function can be related to a variety of variables, most notably the distance from the viewing camera to allow active level-of-detail scaling. This allows objects close to the camera to have fine detail, while further away ones can have more coarse meshes, yet seem comparable in quality. It also can drastically reduce required mesh bandwidth by allowing meshes to be refined once inside the shader units instead of down-sampling very complex ones from memory. Some algorithms can up-sample any arbitrary mesh, while others allow for "hinting" in meshes to dictate the most characteristic vertices and edges.

Circa 2017, the AMD Vegamicroarchitecture added support for a new shader stage—primitive shaders—somewhat akin to compute shaders with access to the data necessary to process geometry.^[11][12]

Nvidia introduced mesh and task shaders with its Turing microarchitecture in 2018 which are also modelled after compute shaders.^[13][14] Nvidia Turing is the world's first GPU microarchitecture that supports mesh shading through DirectX 12 Ultimate API, several months before Ampere RTX 30 series was released.^[15]

In 2020, AMD and Nvidia released RDNA 2 and Ampere microarchitectures which both support mesh shading through DirectX 12 Ultimate.^[16] These mesh shaders allow the GPU to handle more complex algorithms, offloading more work from the CPU to the GPU, and in algorithm intense rendering, increasing the frame rate of or number of triangles in a scene by an order of magnitude.^[17] Intel announced that Intel Arc Alchemist GPUs shipping in Q1 2022 will support mesh shaders.^[18]

レイ トレーシングシェーダーは、MicrosoftではDirectX Raytracing を介して、Khronos GroupではVulkan、GLSL、SPIR-Vを介して、^{[ 19 ]} AppleではMetalを介してサポートされています。NvidiaとAMDは、これらのシェーダーを実行するハードウェアの部分を「レイ トレーシング コア」と呼んでいます。^{[ 20 ]}

Compute shaders refer to compute kernels written in a shading language. These shaders share execution units with vertex shaders and pixel shaders on GPUs, an example of GPGPU operation. They may be used in graphics pipelines for purposes such as additional stages in animation or lighting algorithms (e.g. tiled forward rendering) or be used for a non-graphics purpose. Some rendering APIs allow compute shaders to easily share data resources with the graphics pipeline, which eases the integration of graphics and compute.

Tensor shaders are accelerator programs that deal with matrix operations on large arrays, a type of operation commonly used in neural network-based AI. They may be run on NPUs or GPUs. Tensor shaders are supported by Microsoft via DirectML, by Khronos Group via OpenVX, by Apple via Core ML, by Google via TensorFlow, by Linux Foundation via ONNX.^[25]Nvidia and AMD called the parts of the hardware responsible for executing these shaders "tensor cores".^[26]

Modern video game development platforms such as Unity, Unreal Engine and Godot increasingly include node-based editors that can create shaders without the need for written code; the user is instead presented with a directed graph of connected nodes that allow users to direct various textures, maps, and mathematical functions into output values like the diffuse color, the specular color and intensity, roughness/metalness, height, normal, and so on. The graph is then compiled into a shader.

In web development contexts, visual and component-based shader tools have also emerged. Platforms such as shaders.com provide component-driven composition of shaders for integration into frontend frameworks including Vue, React, and Svelte, while tools such as Shadertoy and FragCoord.xyz focus on lower-level shader authoring and debugging.
